ITX-Llama Mainboard [preorder]

Expected to ship to customers in December 2024.

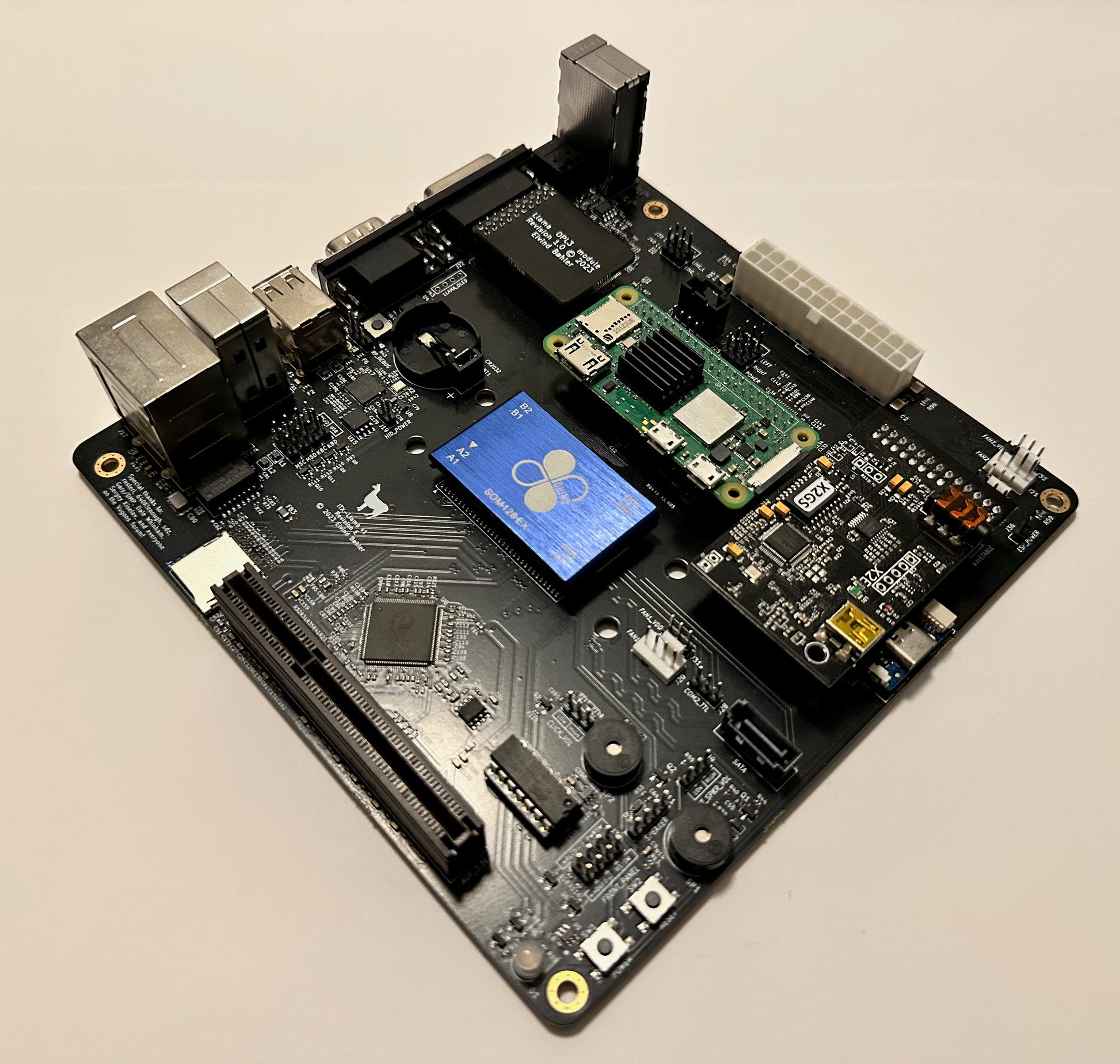

Please note that you will need the Vortex86 SOM and an AGP card to make use of this motherboard, we offer the SOM as a separate purchase for a discounted price and recommend that you include it in your order before checking out.

Also, please note that the OPL3 module, MT32-Pi and wavetables are not included, some are offered as optional extras, so make sure to have a look at them! :)

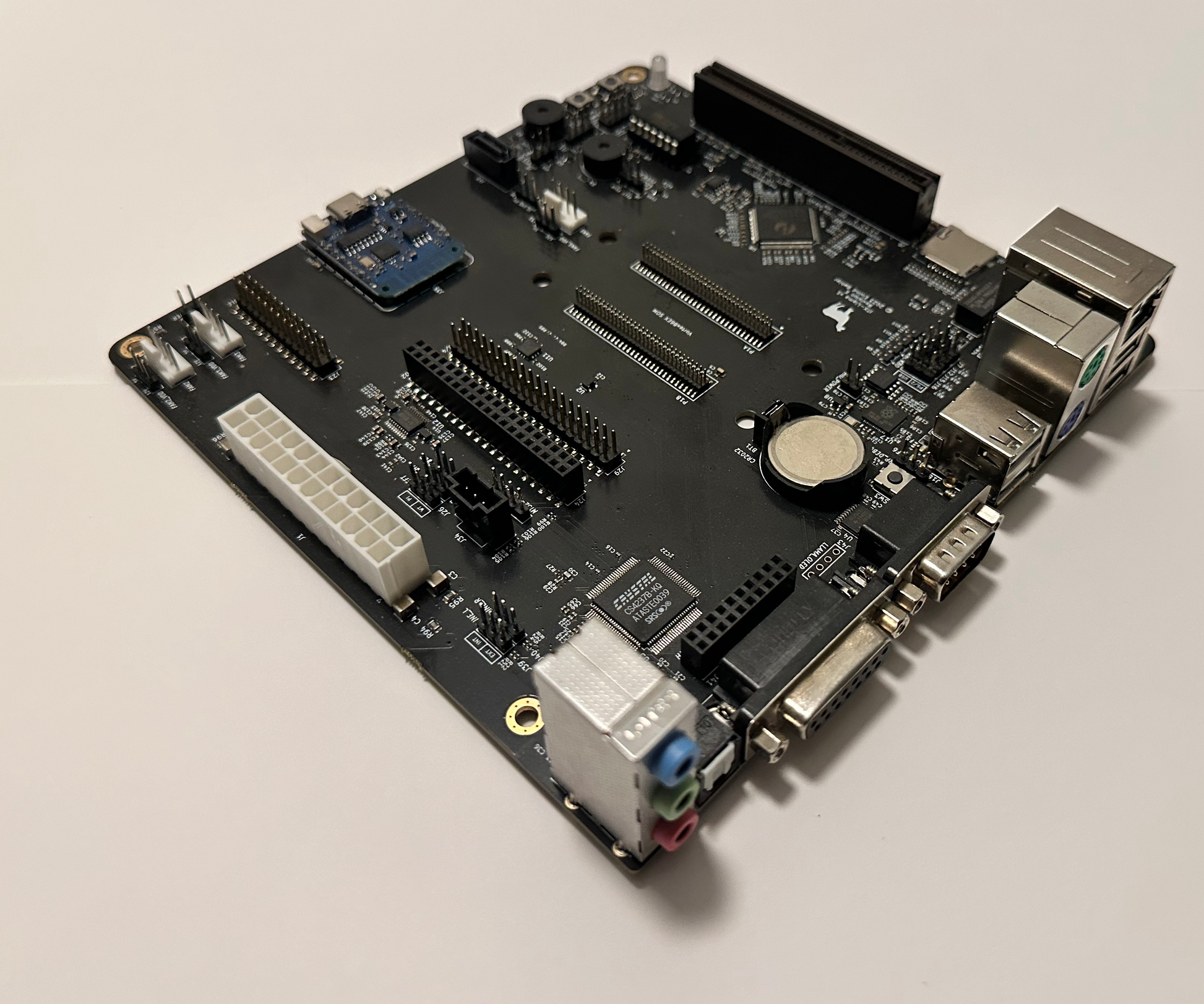

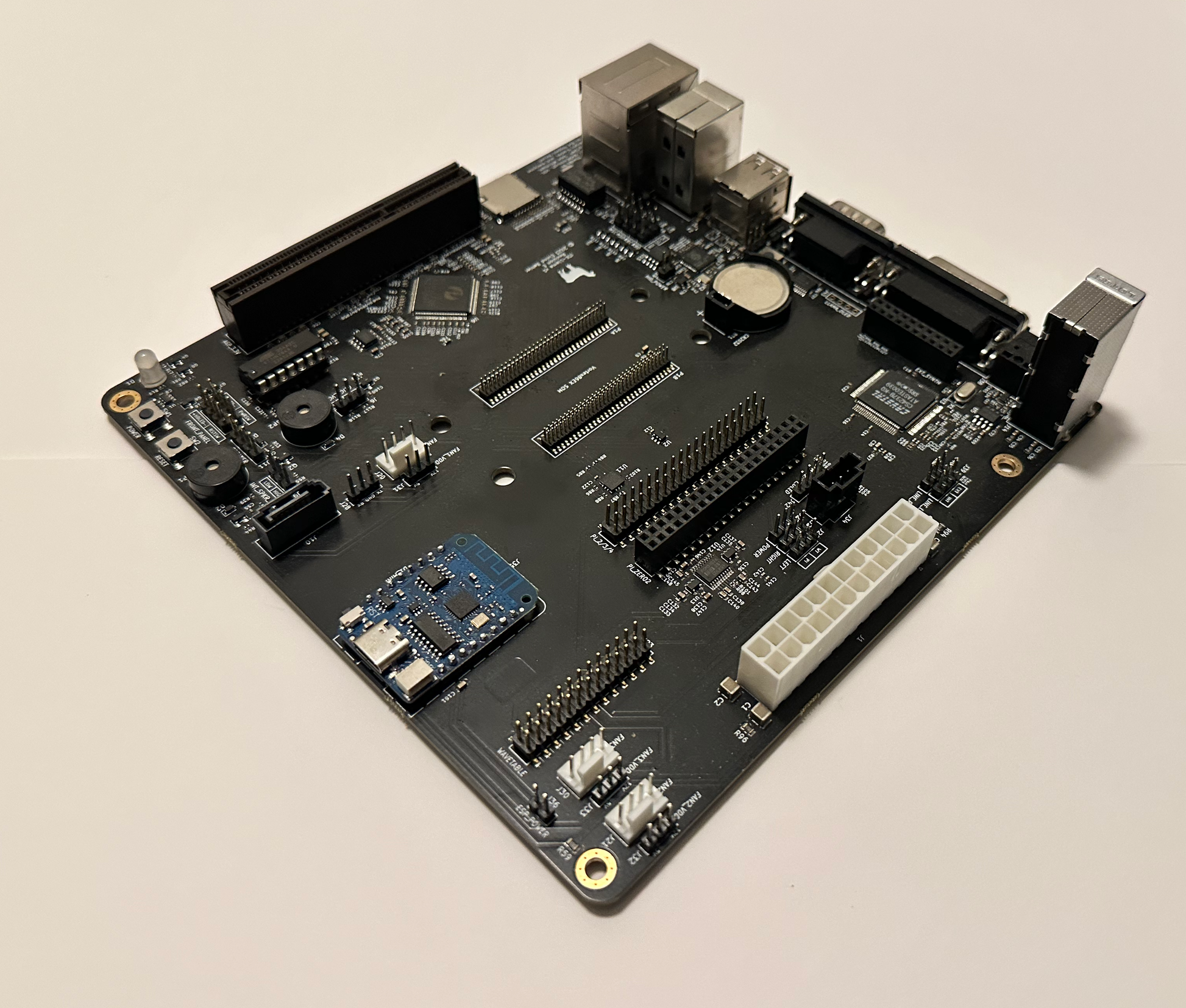

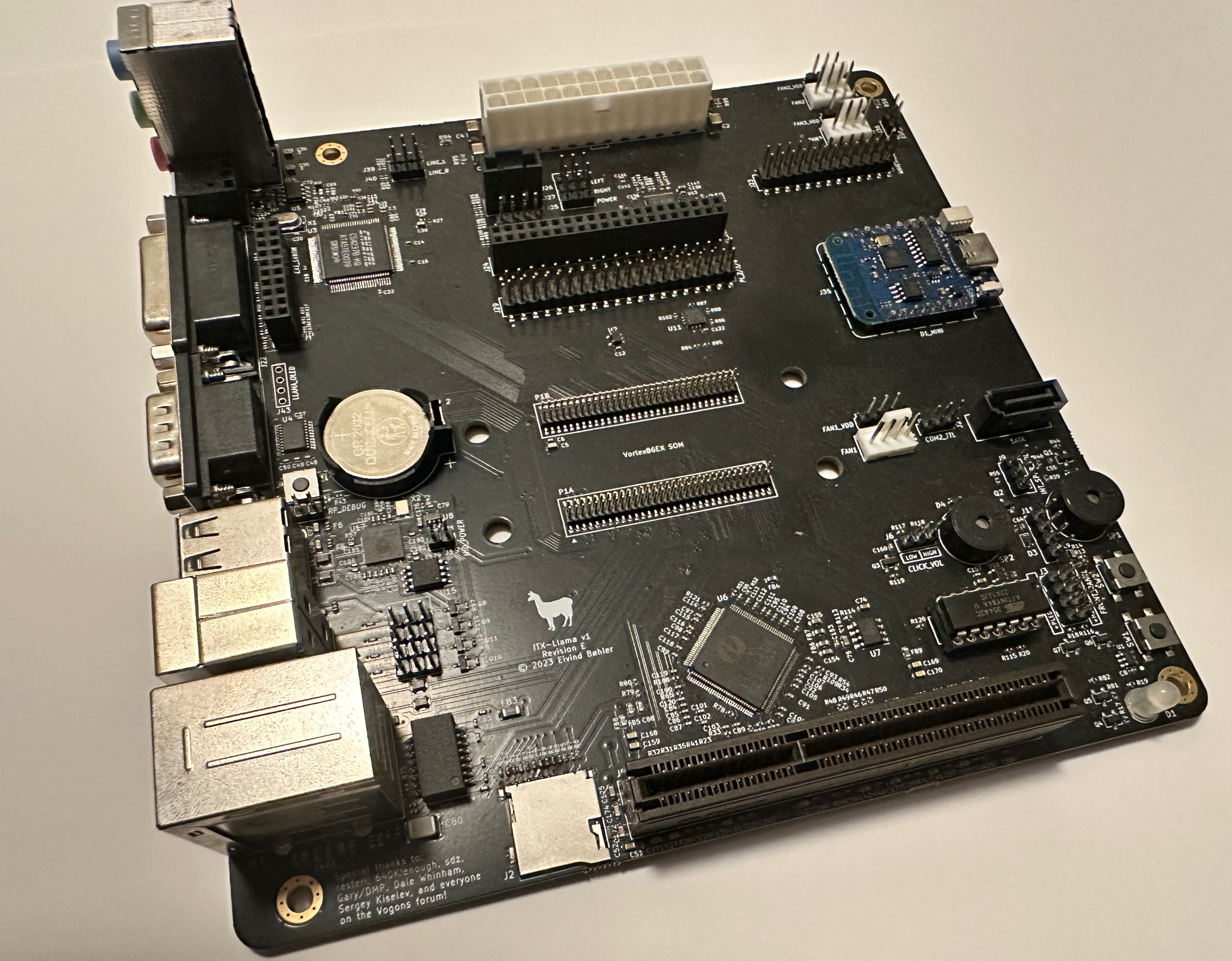

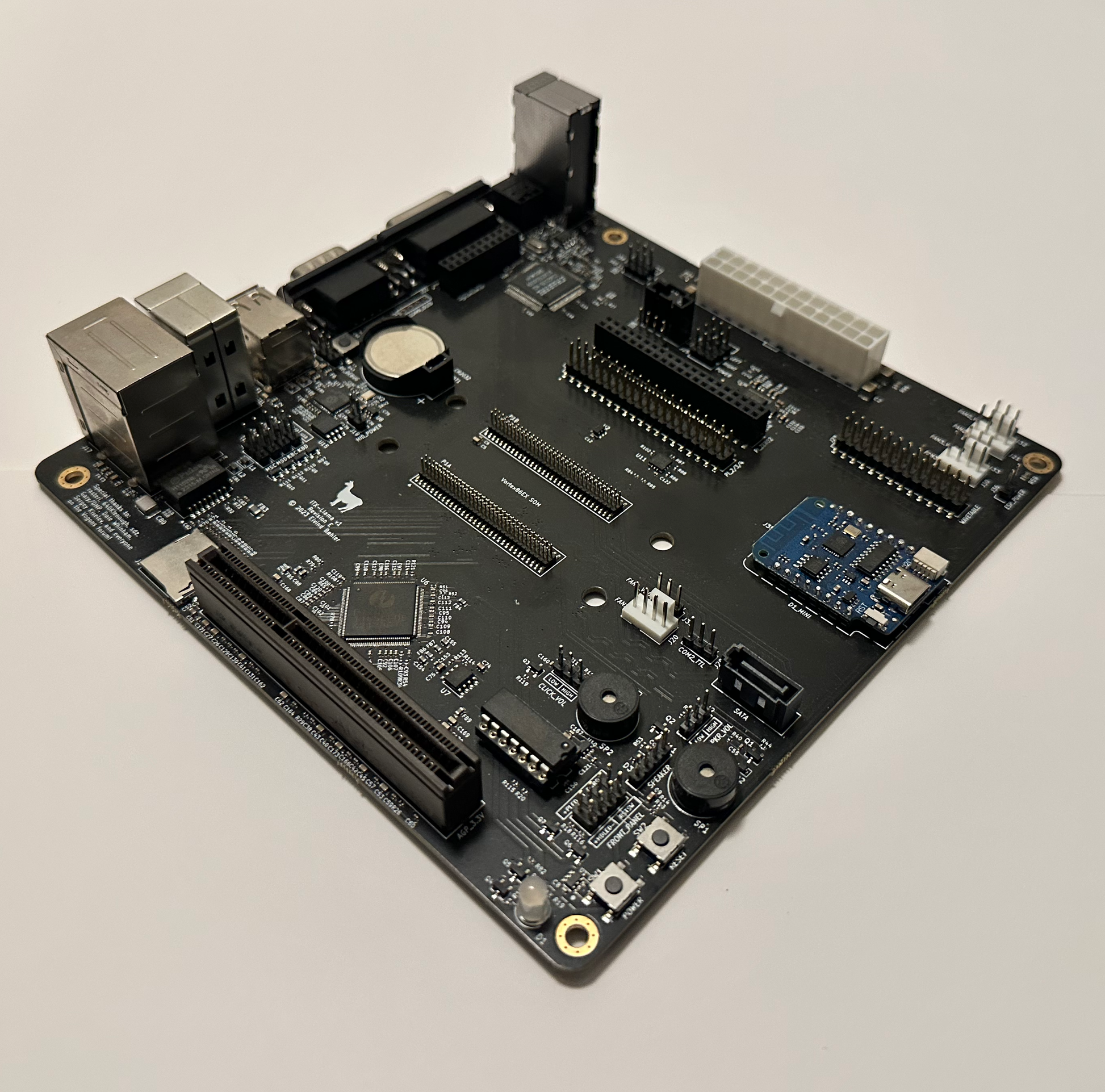

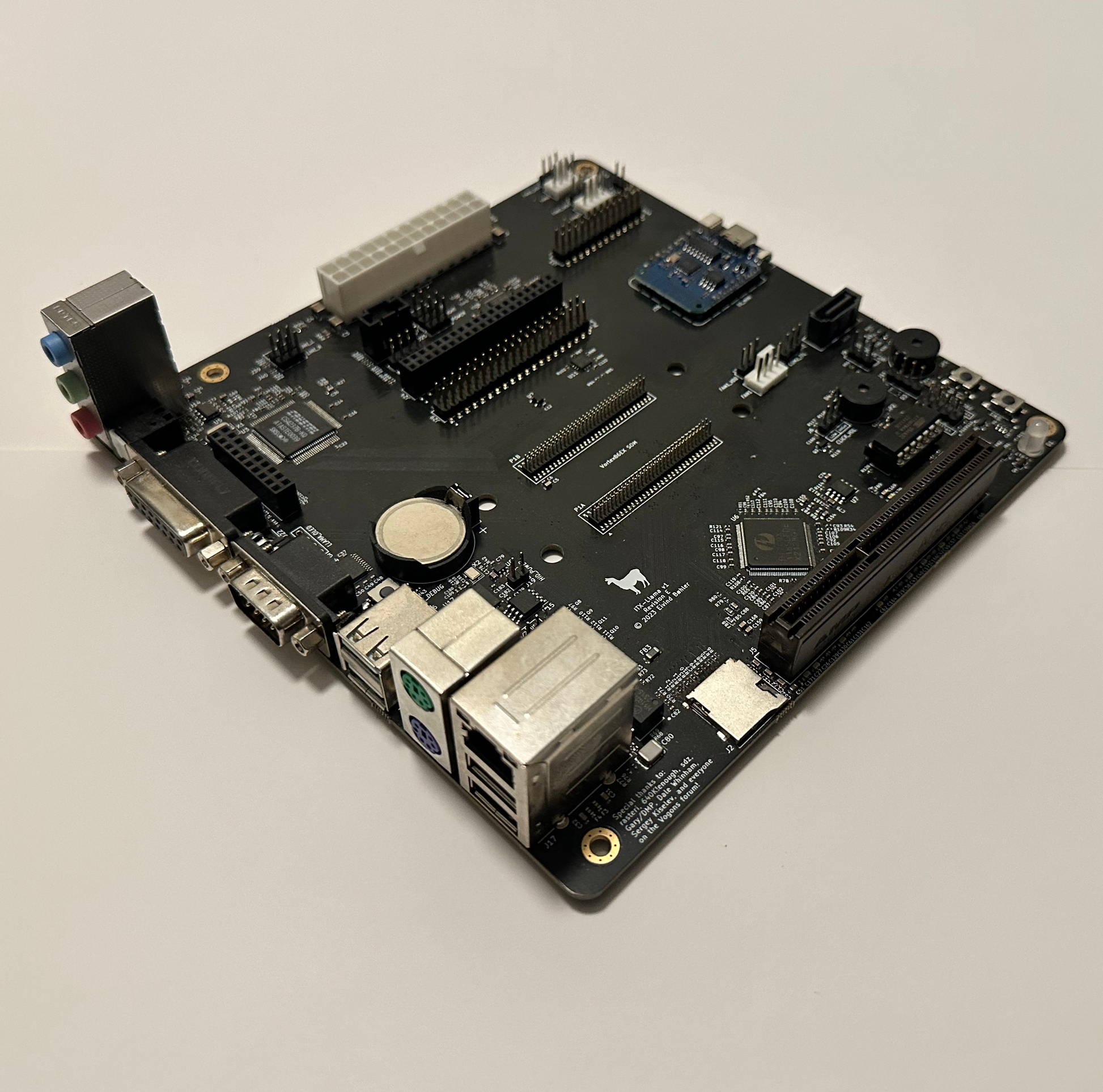

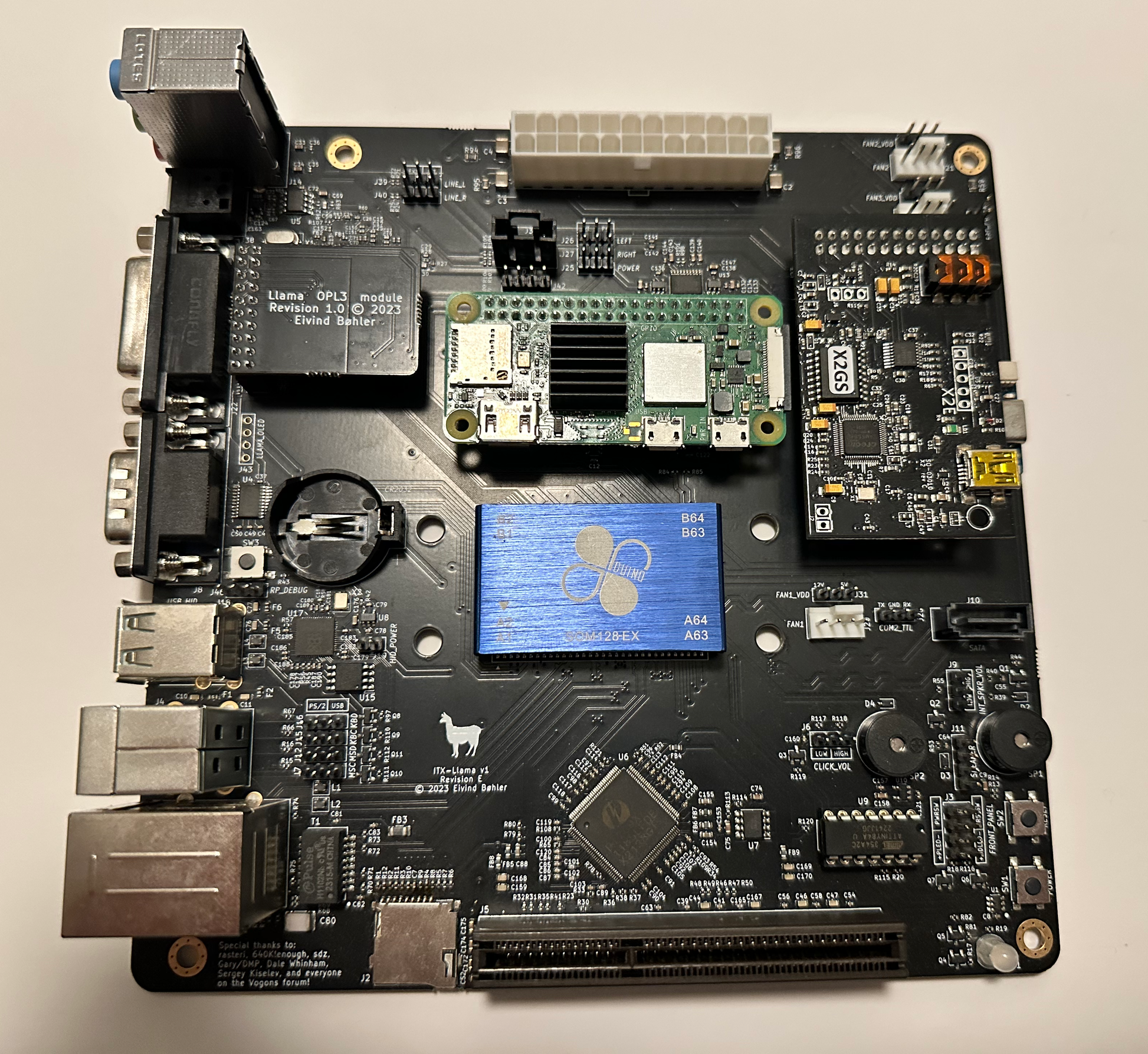

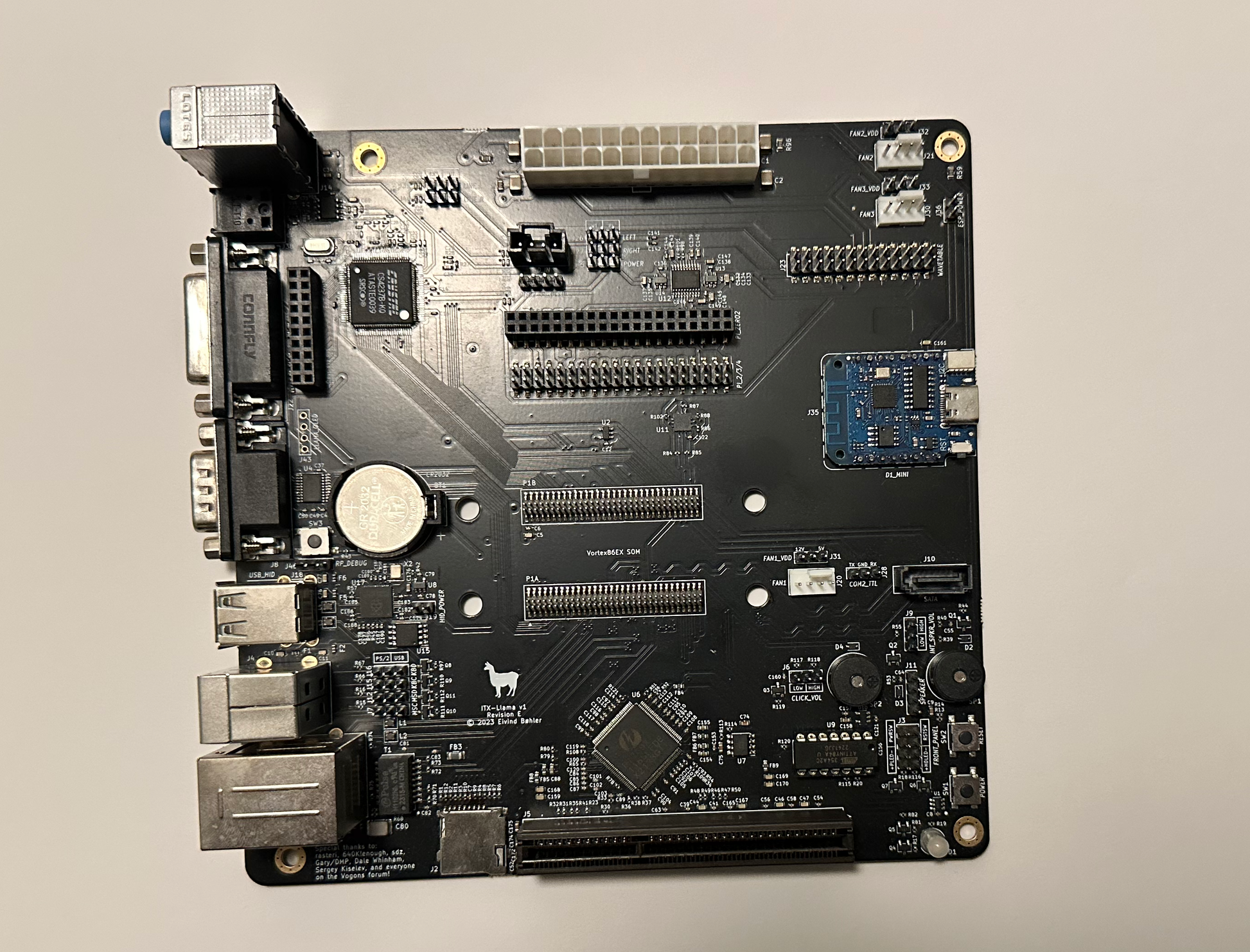

Introducing the ITX-Llama, a retro-inspired true x86 motherboard designed for those passionate about late-DOS and early Windows 98 systems. Built using the powerful and versatile Vortex86EX system-on-module (SOM), the ITX-Llama boasts a P6 (Pentium Pro/II/III)-compatible CPU running at 100-500 MHz, with 128 MB of LPDDR3 RAM and an 8 MB ROM. This compact system delivers performance comparable to a Pentium 233, making it ideal for vintage applications and gaming.

Key Features:

  • ATX Power Connector: Minimal power draw, compatible with low-wattage PSUs.
  • 3.3V-Keyed AGP Slot: Runs at 66 MHz (1x speed), compatible with most 3.3V and universal AGP cards.

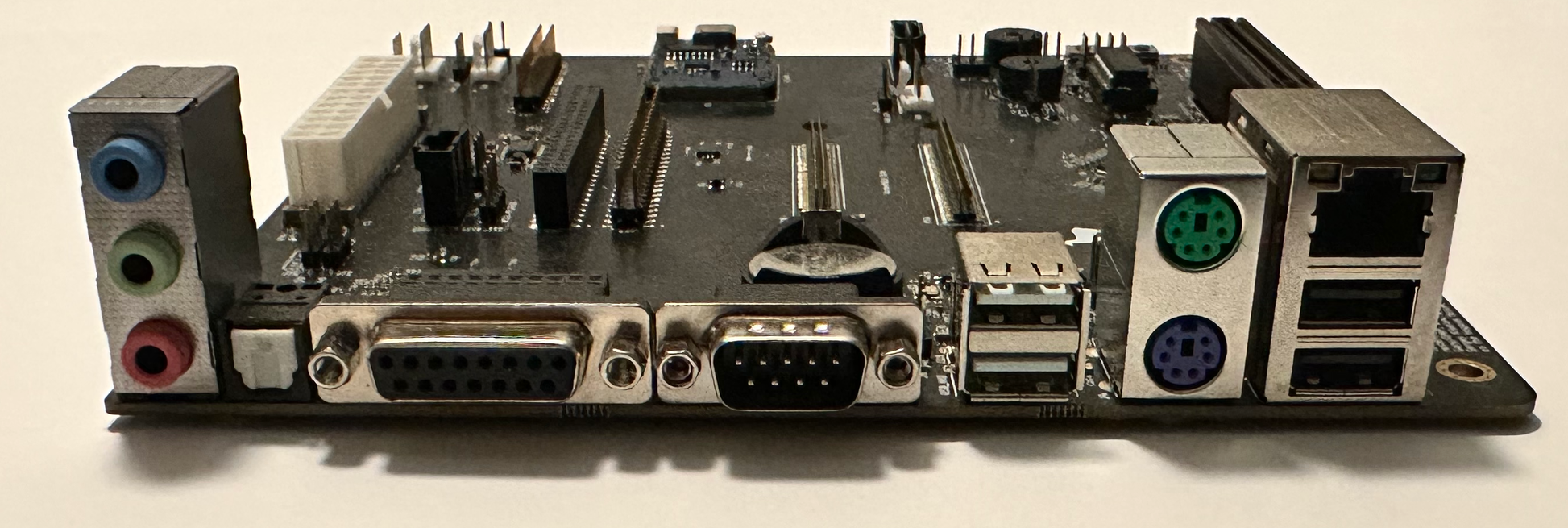

  • Versatile I/O: 2 USB 2.0 ports, PS/2 keyboard/mouse connectors and 1 gameport. There is built-in USB HID to PS/2 support, so you can use modern keyboards and mice without drivers.
  • Networking: 10/100 Mbit Ethernet RJ45 connector, RS232 serial port, internal TTL serial port and ESP8266-based serial-to-WiFi modem for BBS-ing.
  • Rich Audio Options: Includes analogue audio ports, digital optical audio out, built-in Crystal CS4237B sound card with Adlib, SB Pro 2, and WSS compatibility. Supports external OPL3 modules, wavetable boards, and a 40-pin connector for Raspberry Pi (mt32-pi firmware) integration.
  • Storage & Expansion: SATA connector, micro-SD slot.
  • Unique Features: Custom BIOS, "HDD clicker" to simulate vintage hard drive sounds and multi-purpose RGB LED for power and HDD activity, real-time clock (battery is not included).
  • Cooling & Control: 3 PWM fan headers (5V/12V selectable), customizable settings for CPU, disks, fans, LEDs, and more via the Coreboot/SeaBIOS-based BIOS.

Whether you're a retrocomputing enthusiast or a hobbyist looking to relive the glory days of DOS and early Windows eras, the ITX-Llama offers the perfect balance of performance and vintage compatibility in a compact ITX form factor.
